A thermowell is a cylindrical fitting used to protect temperature sensors installed when measuring liquid such as in the production of beer, the thermowell protects the thermometer when measuring the temperature as well as protects the liquid from contamination. The thermowell acts as a barrier between the device measuring temperature and the liquid as well as the liquid from the outside air.
Thermowells are recommended whenever a temperature element is to be inserted into a process where corrosion, pressure, abrasion, or shear forces may threaten the life of the element. In addition, thermowells allow for a defective instrument to be removed without shutting down or draining the process.

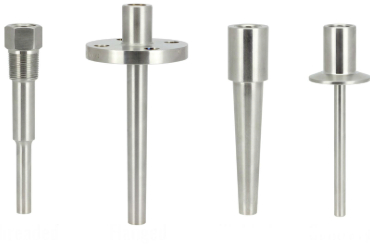

They fit into three broad categories: screwed, flanged, or weld-in, and can be designed to accept thermocouples, RTDs, temperature gauges or filled systems.
Thermowells can be machined from solid bar stock, or fabricated from pipe. Fabricated thermowells offer a lower cost alternative where high pressure is not a design consideration. Standard thread forms are BSP and NPT (others available to order), and flange size and rating can be supplied to suit any requirements.

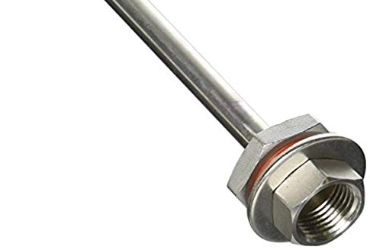

Threaded Thermowells

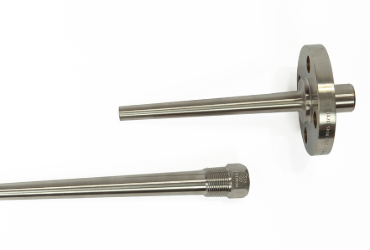

Tlanged Thermowells
Socket Weld Thermowells
Welded Thermowells
